11. Materials

The Materials panel allows generating new material entries, renaming, and applying them to specific volumes.

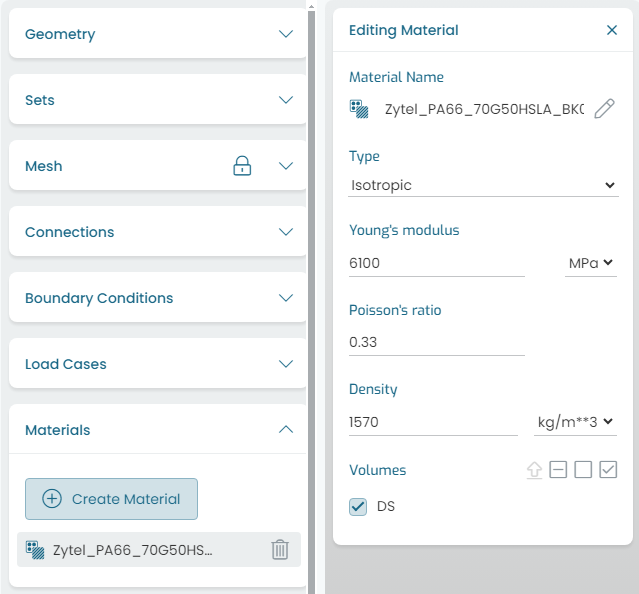

Fig. 11.1 shows an isotropic material entry for linear static analysis.

Fig. 11.1 Isotropic material

Möbius features structural isotropic and anisotropic Material types.

Fig. 11.2 Material types

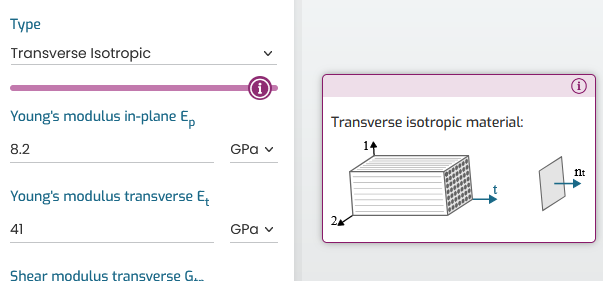

All anisotropic material types have contextual documentation illustrating the adopted convention (as exemplified in Fig. 11.3). This pop-up can be visualized hovering the information icon (i), or opened with a click.

Fig. 11.3 Transverse isotropic material information panel

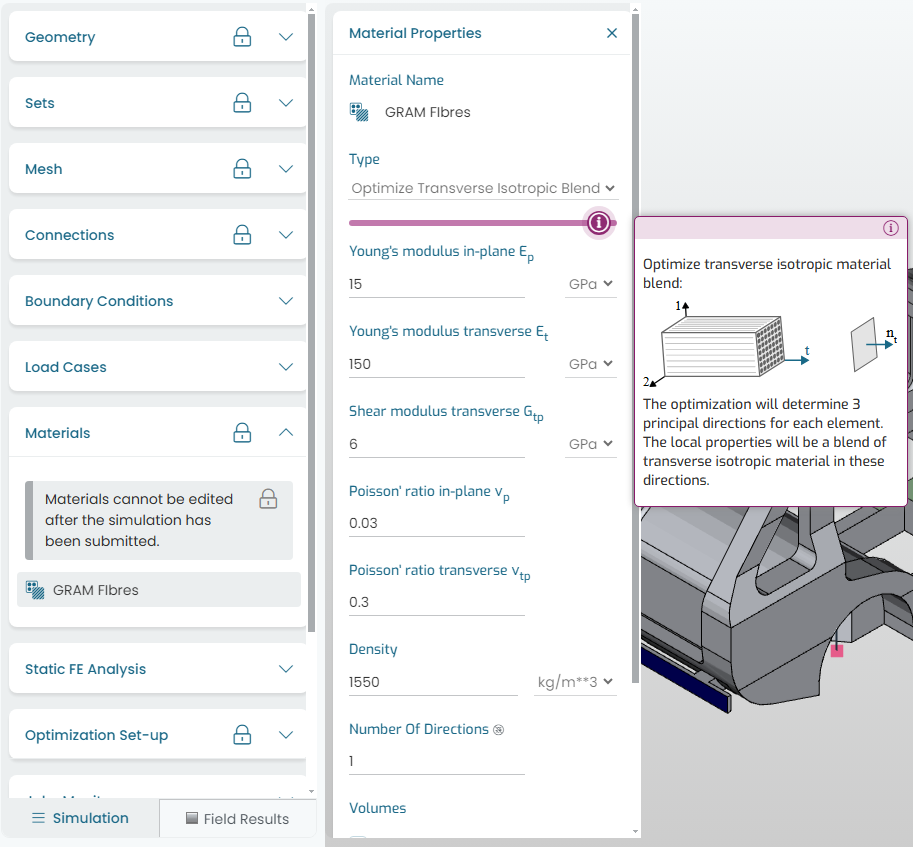

Fig. 11.4 shows an anisotropic material entry for fiber direction optimization analysis.

Fig. 11.4 Anisotropic material

Note

Anisotropic material optimization analysis can be a complex subject.

Please contact Rafinex support (support@rafinex.com) for more detailed information specific to your engineering / analysis requirements.
