1. Simulation Dashboard

When users log into a Rafinex account via: Möbius login, they’ll be confronted with the main simulation dashboard (or control panel), as shown in figure below.

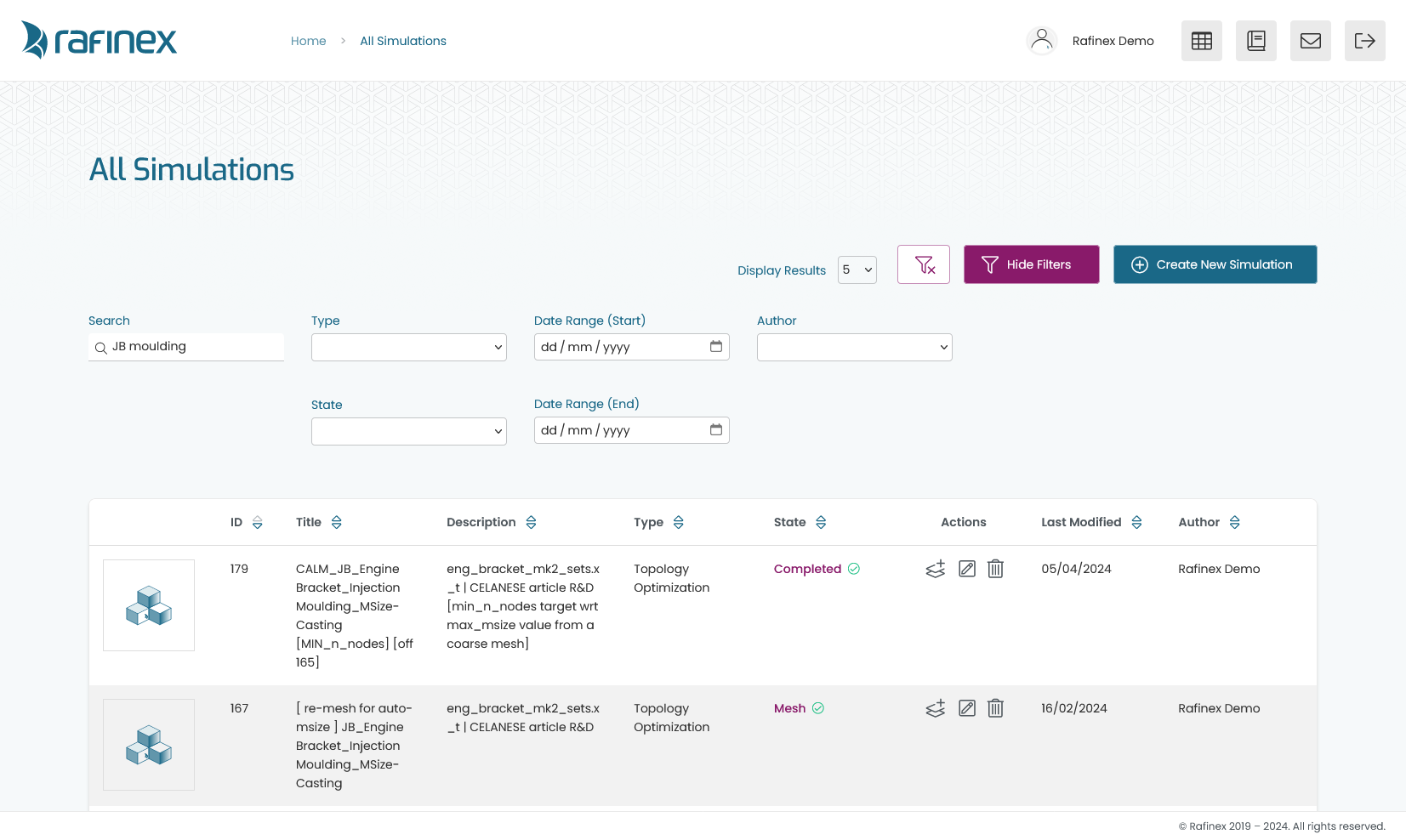

Möbius simulation dashboard

Fig. 1.1 Simulation dashboard

Each model simulation entry features a short title and a description.

Under the Actions column three main buttons are available:

  • Clone : quick duplication of an existing model, which will allow to edit title and description fields.

  • Edit : allows to modify title and description on existing models.

  • Delete : deletes a model from the dashboard.

The Filters section is useful to show only models according to keywords in the title or description, user names and / or other simulation properties.

Tip

It is recommended for CAE teams to agree on keywords on a per project and / or application type. Then by using them in the title or description, models can be filtered quickly from the dashboard.

The Create New Simulation button is explained in more detail in: New Simulation.
